APC by Schneider Electric Back UPS PRO 1500VA Line Interactive Tower UPS
- Details
- Product Documents
- Ratings & Reviews
Details
Details
General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | BR1500MS2 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Back-UPS Pro |
| Product Name | Back UPS PRO 1500VA Line Interactive Tower UPS |
| Marketing Information | High Performance Computer and Electronics UPS for Premium Power Protection The Back-UPS Pro family offers guaranteed power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. These UPSs supply electronics with abundant battery backup during outages and stabilize unsafe voltage levels. They also provide power protection from damaging surges and spikes, and allow the use of management software so you get the most out of your UPS. Premium features of this family may include Automatic Voltage Regulation (AVR), an LCD display, Smart Outlets, energy saving functions that reduce electricity use, network manageability, Watchdog, or configurable outlets. Together with the rest of the Back-UPS Pro's standard features, they are the perfect choice to protect your data and keep your system available. |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
Technical Information
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type |
|
| Receptacle Detail |
|

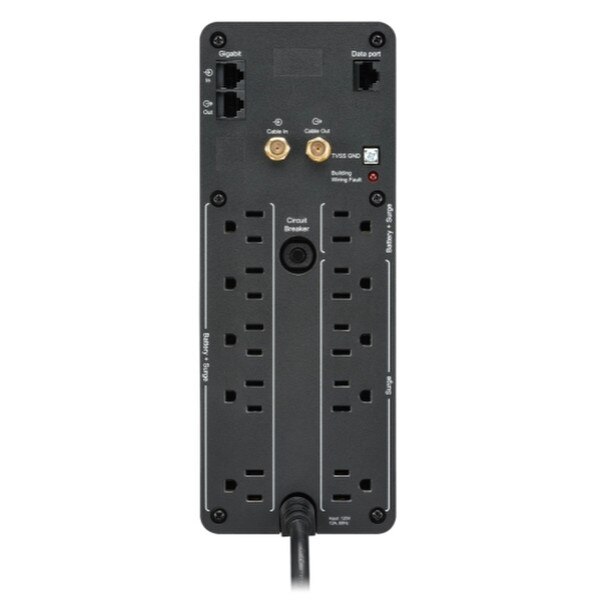

| Number of Battery & Surge Outlets | 10 |
| Number of Surge-only Outlets | 4 |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Cord Length | 6 ft |
| Transfer Time | 8 ms |
| Application/Usage |
|
Power Description
| Load Capacity | 1500 VA/900 W |
| Input Voltage | 120 V |
| Input Voltage Range | 88 V AC - 147 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1080 J |
Management
| Alarm |
|
Controls/Indicators
| Status Indicators | Multifunction LCD status and control console |
Interfaces/Ports
| USB (HID Compliant) Port | Yes |
Battery Information
| Battery Chemistry | Lead Acid |
| Battery Capacity | 257000 mAh |
| Backup/Run Time (Full Load) | 4.10 Minute |
| Backup/Run Time (Half Load) | 14.50 Minute |
| Typical Battery Recharge Time | 16 Hour |
| Replaceable Battery | Yes |
Environmental Conditions
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 10000 ft |
| Sound Emission (A-Weighted) | 45 dB(A) |
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Height | 10.2" |
| Width | 3.9" |
| Depth | 14.5" |
| Form Factor | Tower |
| Weight (Approximate) | 27.56 lb |
Miscellaneous
| Package Contents | |
| Certifications & Standards | ENERGY STAR V2.0 (USA)|NOM|TUV C-US certified |
| Recycled | No |
| Assembly Required | No |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Green Premium | Yes |
| Product Take Back Program | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=BR1500MS2_ROHS_DECLARATION&p_FileName=BR1500MS2KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=552168865&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=552168865&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712010_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712010_EN |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin | Philippines |
Warranty
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 year repair or replace |
| Directly Connected Equipment Guarantee | $500000 Lifetime |
