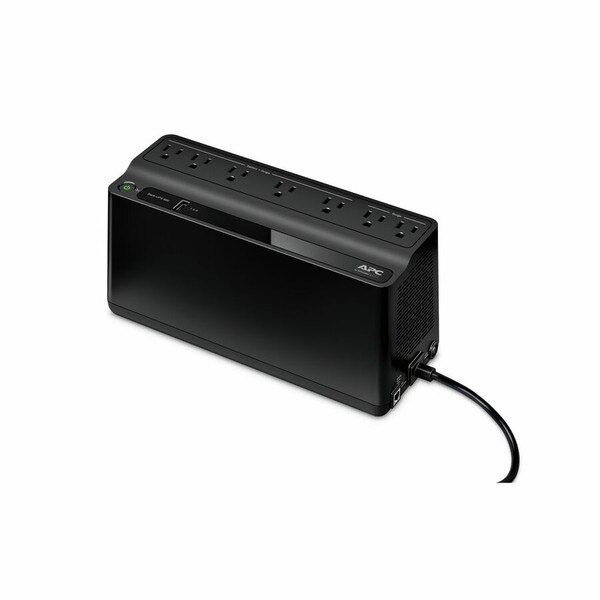

APC by Schneider Electric Back-UPS 600VA Tower UPS
- Details
- Product Documents
- Ratings & Reviews
Details
Details
General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | BE600M1 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Back-UPS |
| Product Name | Back-UPS 600VA Tower UPS |
| Marketing Information | Battery Backup & Surge Protector for Electronics and Computers The Back-UPS battery backup offers guaranteed power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. Models supply battery backup during outages and unsafe voltage fluctuations, as well as provide protection from damaging surges and spikes. They're available in 'tower' or 'floor' styles, and together with a variety of standard features, they are the perfect choice to protect your data and keep you connected. |
| Packaged Quantity | 1 Each |
| Product Type | Standby UPS |
Technical Information
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail |
|
| Number of Battery & Surge Outlets | 7 |
| Number of Surge-only Outlets | 2 |
| Cord Length | 5 ft |
| Transfer Time | 6 ms |
| Application/Usage |
|
Power Description
| Load Capacity | 600 VA/330 W |
| Input Voltage | 120 V |
| Input Voltage Range | 92 V AC - 139 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Stepped Approximated Sine Wave |
| Surge Energy Rating | 490 J |
Management
| Alarm |
|
Controls/Indicators
| Status Indicators | LED Status Display:
|
Battery Information
| Battery Characteristics | Maintenance-free, Sealed, Leak-proof |
| Battery Chemistry | Lead Acid |
| Battery Energy | 237.6 kJ |
| Backup/Run Time (Full Load) | 3.20 Minute |
| Backup/Run Time (Half Load) | 11.80 Minute |
| Typical Battery Recharge Time | 10 Hour |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
Environmental Conditions
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 9842.52 ft |
| Maximum Storage Elevation | 49212.60 ft |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 35 dB(A) |
| Thermal Dissipation | 4.69 W |
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Height | 5.5" |
| Width | 10.8" |
| Depth | 4.1" |
| Form Factor | Tower |
| Weight (Approximate) | 7.69 lb |
Miscellaneous
| Package Contents | |
| Certifications & Standards | California (CEC) Battery Charger|cTUVus|NOM |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Green Premium | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=BE600M1_ROHS_DECLARATION&p_FileName=BE600M1KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458562998&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458562998&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712010_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712010_EN |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Energy Star URL | https://www.energystar.gov/products/data_center_equipment/uninterruptible_power_supplies |
| REACH free of SVHC | No |
Warranty
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years repair or replace |
| Directly Connected Equipment Guarantee | $75000 Lifetime |
