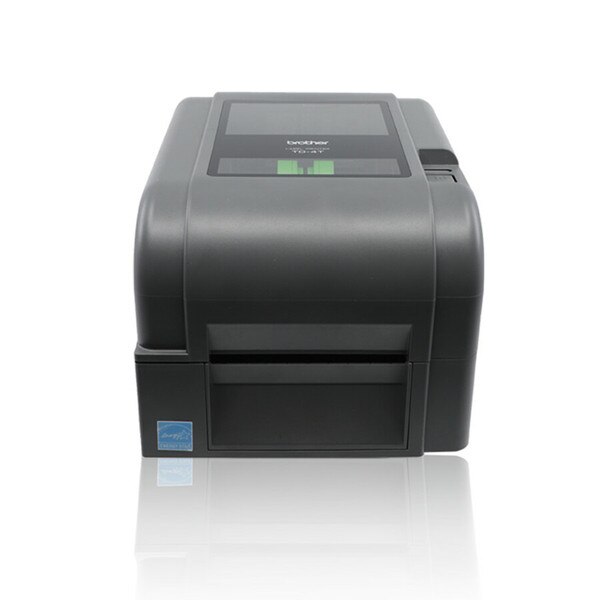

Brother TD-4420 4.3" Thermal Transfer 203dpi Network Label Printer


Brother TD-4420 4.3" Thermal Transfer 203dpi Network Label Printer

  • Details
  • Product Documents
  • Ratings & Reviews



General Information

ManufacturerBrother Industries, Ltd
Manufacturer Part NumberTD4420TN
Manufacturer Website Address
Brand NameBrother
Product ModelTd-4420tn
Product NameTD-4420TN Printer
Marketing Information

With 203dpi and print speeds up to 6ips, 4" desktop network thermal printers affordably print barcode labels, and tags for SMB supply chain operations. Ideal for inventory, shipping, barcode, and shelf labeling, these precision-built barcode label printers deliver the right levels of performance, quality, and integration at an exceptional value. Experience fast spindle-less media loading, Windows compatibility, ZPL, EPL and DPL emulations and comes with intuitive design software. Now, you can easily and affordably produce the labels you need, with the reliability and support that only Brother delivers. Because powerful desktop printing doesn't always come at a price.

Main Features

  • New Industry Pricing for a Desktop Network Printer with a 2 Year Limited Premier Warranty (Includes Print Head)Combines Best Performance with Lowest Costs and Best Limited Premier Warranty. Choose from limited warranty extension options up to a maximum of 5 years coverage.
  • Wide Range of Compatible Software SolutionsSeamless integration with backwards compatibility with virtually any competitive desktop printer
  • Complete Thermal Printing Solution - Includes Design SoftwareComes with virtually everything needed to design and print high quality media right out of the box
  • Prints up to 6ips‡ on Thermal Transfer & Direct Thermal Labels, Tags, Receipts & WristbandsVersatile design delivers higher performance with media diversity that helps improve efficiency
  • Prints Small Labels & Comes with Adjustable Media SensorVersatile media compatibility with virtually any direct thermal and thermal transfer media
  • Spindle-Less, Spring Loaded Media Guides with Adjustable Open-and-Lock PositionTrue drop-in and easier media loading experience
  • Compatible with 300m Ink Ribbon and 8" OD Media Roll with Optional External Media Roll HolderUse common media in mixed deployment of industrial tabletop and desktop printers & helps increase productivity and higher print job volume from a desktop printer
  • Wide Range of Compatible Software Solutions Using Windows Printer Driver & ZPL/EPL/DPL EmulationsSeamless integration with backwards compatibility with virtually any competitive desktop printer‡
  • Real Time Clock with Battery BackupNo extra cost to use built in clock/calendar
  • Thermal Transfer Printing Mechanism is Protected by an ABS Plastic ShellInnovative print engine modular design helps protect use tough environments
Product TypeDirect Thermal/Thermal Transfer Printer

Technical Information

Recommended UseLabel/Receipt Print
Print Color CapabilityMonochrome
Maximum Mono Print Speed6 in/s
Maximum Print Resolution (dpi)203
Maximum Print Width4.25"
Barcode Symbology Supported
  • PDF417
  • Data Matrix
  • Maxi Code
  • QR Code
  • Micro QR
  • Code 39
  • Code 93
  • Code 128
  • ITF
  • UPC-A/E
  • EAN-13
  • EAN-8
  • GS1 DataBar
  • MSI
  • Plessey
  • Industrial 2 of 5
  • Codabar (NW-7)
Peel FacilityYes


Standard Memory64 MB


Serial PortYes
USB HostYes

Network & Communication

Ethernet TechnologyFast Ethernet



Media Types & Handling

Media Type
  • Label
  • Receipt
  • Wristband
  • Fanfold
  • Tag
  • Perforated Label
  • Continuous Roll
  • Die-cut Label
Media SensorAdjustable Media Sensor
Media Thickness7.48 mil
Maximum Roll Diameter5"
Maximum Label Width4.65"

Fonts & Emulation

Language Emulation
  • ZPL
  • EPL
  • DPL
  • ZPL II
  • EPL2
  • CPCL


Operating System Supported

Windows 10 (32/64bit), Windows 8 (32/64bit), Windows 7 (32/64bit), Windows Vista (32/64bit), Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008 (32/64bit), Mac OS X 10.10.x or later, Linux Red Hat and Debian

Power Description

Power SourcePower Adapter

Environmental Conditions

Operating Temperature32°F (0°C) - 104°F (40°C)
Operating Relative Humidity20% - 85%
Storage Temperature-4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity5% - 90%

Physical Characteristics

Weight (Approximate)4.41 lb


Package Contents
  • TD-4420TN Printer
  • USB Cable
  • AC Adapter
  • Power Cable
  • Printed Guides
  • Software (Brother Solutions Center)
Cables Included
  • USB
  • AC
Power Adapter IncludedYes
Platform Supported
  • PC
  • Mac
Energy StarYes


Limited Warranty2 Year
