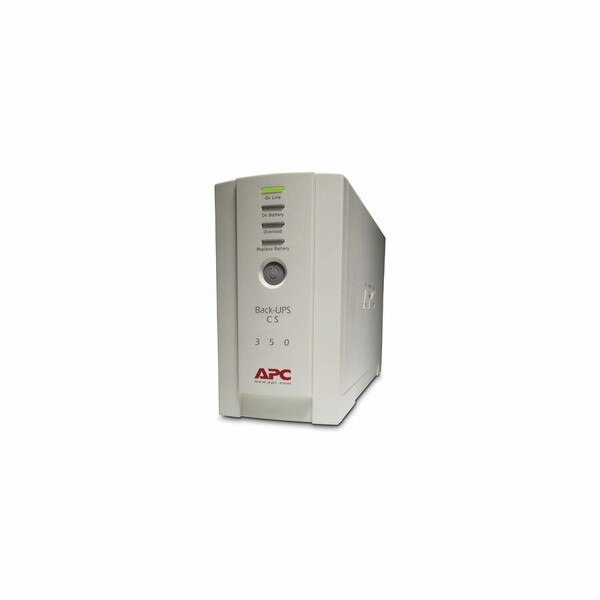

APC Back-UPS CS 350VA
- Details
- Product Documents
- Ratings & Reviews
Details
Details
General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | BK350 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Back-UPS |
| Product Series | CS |
| Product Name | BK350 120V Backup System |
| Marketing Information | Protect your electronics with this 6-outlet, 120-volt battery backup system. 210-watt back-UPS features a surge energy rating of 1,020 joules. Serial connection lets you use your PC to access additional power protection and management features for your uninterruptible power supply (UPS) through a serial port. Disconnected battery notification warns you when a battery is not available to provide backup power. Cold-start capability provides temporary battery power when the utility power is out. Dataline surge protection protects connected equipment from power surges on the data lines. Hot-swappable batteries ensure clean, uninterrupted power to your protected equipment while the batteries are being replaced. Wiring fault indicator informs you of potentially dangerous wiring problems in the wall circuit. |
| Product Type | Standby UPS |
Technical Information
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail |
|
| Number of Battery & Surge Outlets | 6 |
| Dataline Protection | RJ-11 |
| Bypass Switch | Not Provided |
| Cord Length | 6 ft |
Power Description
| Load Capacity | 350 VA |
| Input Voltage | 120 V |
| Input Current | 10 A |
| Output Voltage | 120 V AC |
| Power Consumption | 210 W |
| Waveform Type | Stepped Approximated Sine Wave |
| Surge Energy Rating | 1020 J |
Management
| Alarm |
|
| Battery Management | Intelligent Battery Management |
Controls/Indicators
| Status Indicators | LED status display with On Line, On Battery, Replace Battery, Site wiring Fault and Overload indicators |
Interfaces/Ports
| Serial Port | Yes |
| USB | Yes |
Battery Information
| Battery Characteristics | Maintenance-free |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 6.60 Minute |
| Backup/Run Time (Half Load) | 23.70 Minute |
| Typical Battery Recharge Time | 8 Hour |
Environmental Conditions
| Maximum Operating Temperature | 113°F (45°C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Thermal Dissipation | 5.86 W |
Physical Characteristics
| Color Family | Beige |
| Product Color | Beige |
| Height | 6.5" |
| Width | 3.6" |
| Depth | 11.2" |
| Form Factor | Tower |
| Mounting Location | Front |
| Weight (Approximate) | 12.52 lb |
Miscellaneous
| Package Contents | |
| Additional Information |
|
| Certifications & Standards | California (CEC) Battery Charger|ENERGY STAR V2.0 (USA)|TÃœV |
| Recycled | No |
| Post-consumer-waste% | 0% |
| Assembly Required | No |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Green Premium | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=BK350_ROHS_DECLARATION&p_FileName=BK350KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=760892&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=760892&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712010_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712010_EN |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| Country of Origin | Philippines |
Warranty
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years repair or replace |
| Directly Connected Equipment Guarantee | $100000 Lifetime |
